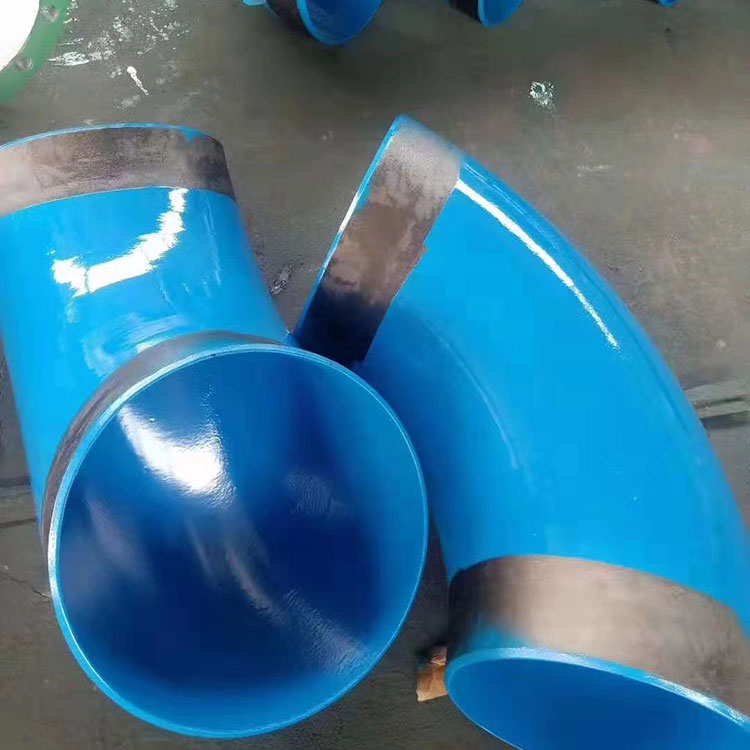

You can rest assured to buy customized Pengfa Pipe Galvanized Elbow from us. North America, Europe and Asia-pacific region is our main geographical market area. I Elbow is used for pipe bending pipe fittings, in all pipe fittings used in the pipeline system, the proportion is larger, about 80%, usually different material or wall thickness of the elbow selection of different forming process. At present, seamless elbow forming processes commonly used by manufacturers include hot push, stamping, extrusion, etc.
As the professional manufacture, we would like to provide you Pengfa Pipe Galvanized Elbow. According to the angle, there are three most commonly used ones: 45°and 90°180°, and other abnormal angle elbows such as 60°are also included according to engineering needs. Pipe Galvanized Elbow materials include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The ways to connect with the pipe are: direct welding (the most common way) flange connection, hot-melt connection, electric fusion connection, thread connection and socket connection, etc. According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc.
The hot push elbow forming process is to use a special bending press, core die and heating device, so that the billet on the mold moves forward under the push of the press, heating, expansion and bending process in motion. The deformation characteristics of hot-push elbow are determined according to the law of constant volume before and after plastic deformation of metal materials. The diameter of the billet is smaller than the diameter of the elbow. The core model is used to control the deformation process of the billet, so that the flow of the compressed metal in the inner arc is compensated to other parts of the diameter expansion and thinning, so as to obtain the elbow with uniform wall thickness.
Other names: 90-degree elbow, right-angle bend, etc. Pipe Galvanized Elbow are made of steel and are available in various sizes, thicknesses, and angles. They are classified according to the angle of the bend, with the most common being 90 degrees and 45 degrees. They can also be made with a variety of end connections, including threaded, welded, or flanged.
Pipe Galvanized Elbows are used in a wide range of applications across various industries. Some common applications of Pipe Galvanized Elbows include:
Oil and Gas: Pipe Galvanized Elbows are used in oil and gas pipelines to connect pipes and change the direction of the flow of oil or gas. They are used in exploration, drilling, and production operations, as well as in the transportation of oil and gas.
Chemical and Petrochemical: Pipe Galvanized Elbows are used in chemical and petrochemical industries for the transport of corrosive fluids and gases. They are used in pipelines that handle chemicals, acids, and other hazardous substances.
Power Generation: Pipe Galvanized Elbows are used in power generation plants for the transport of steam, water, and other fluids. They are used in boilers, turbines, and other equipment that requires the efficient transport of fluids.
Overall, Pipe Galvanized Elbows are a critical component of piping systems across a wide range of industries, and their applications are diverse and varied.
