You can rest assured to buy Pengfa mAT-180H Automatic Antenna Tuner from our factory and we will offer you the best after-sale service and timely delivery. The mAT-180H provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
The mAT-180H Automatic Antenna Tuner is an automatic antenna tuner specially designed for modern ICOM and KENWOOD HF transceivers. It has two control cables to choose from: mAT-CI and mAT-CK. They are suitable for ICOM and KENWOOD transceivers respectively. With matching control cables, tuners can be used for corresponding transceivers. mAT-180H standard accessories only contain ICOM control cable mAT-CI, if you need mAT-CK, please buy more.
When mAT-180H Automatic Antenna Tuner is used in ICOM transceiver through mAT-CI control cable, it is fully compatible with the original AH-3 and AH-4 automatic tuners of ICOM. Transceivers that can use both ICOM tuners can also use mAT-180H, which includes IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600 series transceivers.
When the tuner is used in KENWOOD transceiver through mAT-CK control cable, it is fully compatible with KENWOOD original tuners, such as AT-250, AT-300. KENWOOD transceivers that can use mAT-180H are TRC-80, TK-80, TS-2000, 50, 450, 480SAT (excluding HX version), 570, 590, 850, 870, 990, etc. Other types of transceivers can use mAT-180H as long as they support KENWOOD AT-300 tuners. KENWOOD TS-430, TS-440 are too old to use this tuner.
The mAT-180H Automatic Antenna Tuner has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-180H uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-180H "learns" as it is used, adapting to the bands and frequencies as it goes.

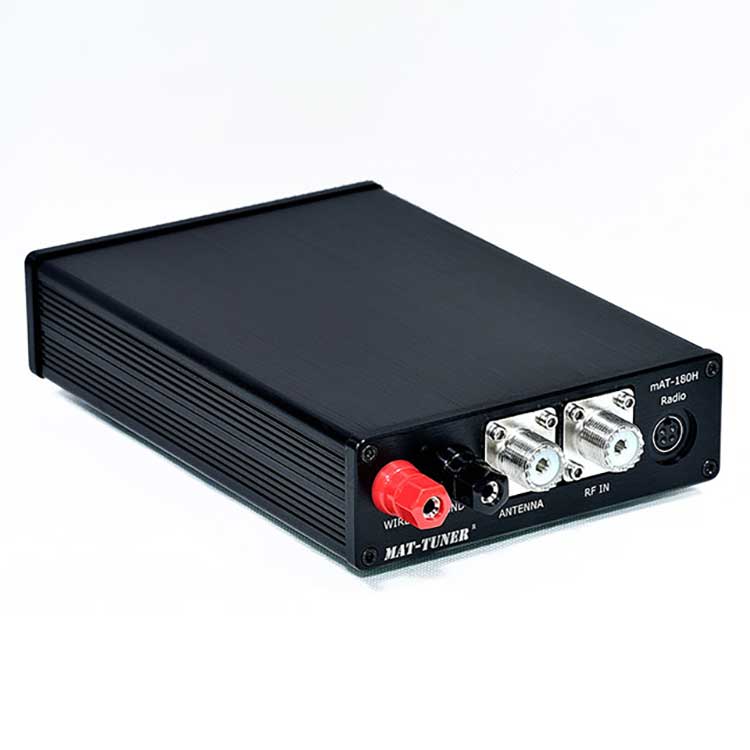

There are four fine-tuning buttons on the front panel of the mAT-180H, and sometimes you can get a lower SWR with them. It also has a "TUNE" button on the front panel, which can also start tuning.To facilitate the use of wire antennas, in addition to having two SO-239 standard RF sockets, the rear panel of the mAT-180H Automatic Antenna Tuner has two terminals, one red and one black. Red terminal connecting wire antenna, black terminal connecting ground wire. The mAT-180H connects to the transceiver via its tuner jack to control the tuning cycle, the transceivers tune button controls the tuner. The tuner jack also powers the tuner, so it requires no external power supply.
This is the mAT-CI control cable, which is used to connect the mAT-180H to the ICOM transceiver, transmit control commands and power supply. It is the standard accessory of the tuner and is provided with the tuner.This is the mAT-CK control cable, which is used to connect the mAT-180H to the KENWOOD transceiver, transmit control commands and power supply. It's not a standard accessory to tuners, it's an optional device.
