Pengfa Low Pressure Pipe is a robust and reliable product manufactured by a leading manufacturer in China. As a trusted supplier, this manufacturer specializes in producing low pressure pipes that cater to a wide range of industrial and commercial needs.
The Pengfa Low Pressure Pipe is designed to withstand the pressures and temperatures associated with low-pressure systems, ensuring safe and efficient fluid transfer. With its superior quality and durability, this product has become a favorite among customers in China and beyond, reflecting the manufacturer's dedication to delivering top-notch products and services.
Usage: Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.
Certificate: ISO 9001-2008
Out Diameter: 10.3-914.4mm
Wall Thickness: 1.73-40mm
Length: Random Length, Fixed Length, SRL, DRL

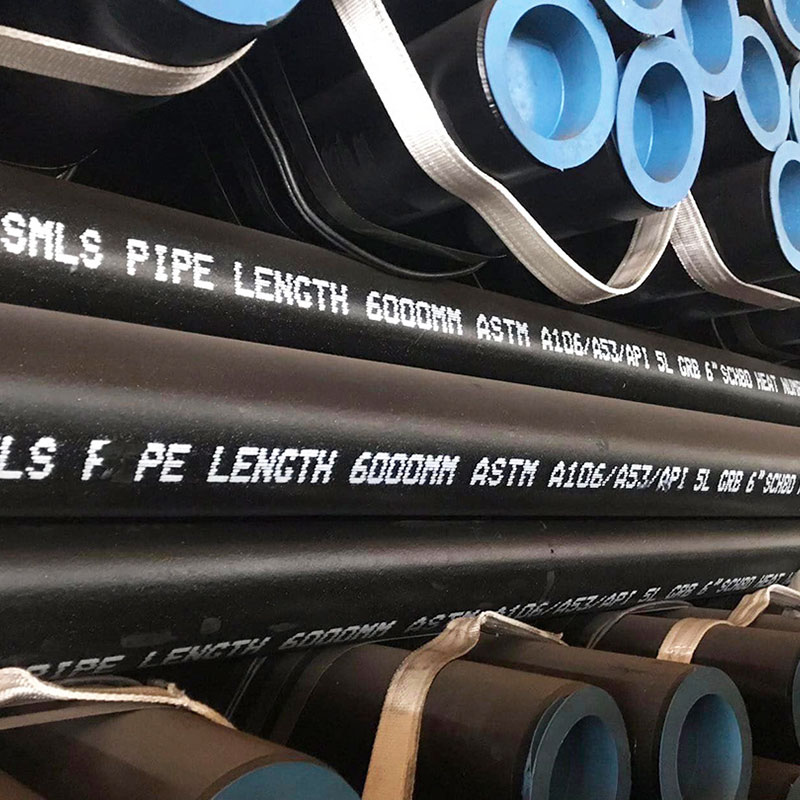

SMLS pipe, which stands for seamless steel pipe, is crafted from a single piece of metal without any seams or joints on its surface. Depending on the production technique employed, seamless pipes can be categorized into various types such as hot-rolled pipes, cold-rolled pipes, cold-drawn pipes, extruded pipes, and pipe jacking pipes.
Based on their applications, seamless steel pipes are further divided into thick-walled and thin-walled varieties. These pipes have a multitude of uses, primarily in fields like petroleum geological drilling, petrochemical cracking, boiler and furnace construction, automotive and tractor bearings, and high-precision structural applications in aviation.
They are broadly classified into two categories: general-purpose pipes (intended for water and gas pipelines, structural components, and mechanical parts) and special-purpose pipes (specifically designed for boilers, geological exploration, bearings, acid resistance, and other specialized applications).
Standard: API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444,JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213,SA335, DIN17175, ASTM A179…
Steel Grade
API 5L: API 5L: GR B, X42, X46, X56, X60, X65, X70
ASTM A53/A106: GR A, GR B, GR CASME SA106: GR.A, GR.B, GR.CASME
SA192:
SA192ASME SA209M: T1, T1a
ASTM A335: P1, P2, P5, P9, P11, P22, P23
ASTM A333: Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11
Heat Treatment
Annealed (Bright Annealed, Spheroidize Annealed), Normalized, Stress Relieved, Cold Finished, Quenched and Tempered
Delivery Condition: BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C)
Mill Test Certificate: EN10204 3.1
Please contact us for more information
| Year 2023 | Saudi Arabia | 2420 Tons | Water pipeline project,API 5L PSL 1 X52,seamless steel pipe with 3 LPE coating for water transmission(YS257) |
| Year 2022 | NA | 1440 Tons | API 5L PSL1 X52,Oil pipeline project, seamless steel pipe for Oil pipeline |
| Year 2022 | Mexico | 817 Tons | handle gasoline, diesel, MTBE and additives project, API5L PSL1 Gr.B Seamless steel pipe for oil transmission |
| Year 2022 | UAE | 2340 Tons | Offshore pipeline project ,API 5L PLS1 GR.B/ASTM A106 GR.B ,Seamless steel pipe with Concrete weight coating |
| Year 2022 | Nigeria | 5310 Tons | Gas pipeline project, API 5L PSL2 X65,Seamless line pipe for Gas transmission |
| Year 2021 | Qatar | 670 Tons | Water transportation project, ASTM A53 GR.B, Seamless steel pipe for water transmission |
| Year 2020 | Nigeria | 1152 Tons | Gas pipeline project, API 5L PSL1 X60 with 3PE coating ,Seamless line pipe and fittings for Gas transmission |
| Year 2020 | Indonesia | 643 Tons | Residence Gas Network in District Ogan Komering Ulu and District Muara Enim project, API 5L PSL2 Gr.B, seamless steel pipe |
| Year 2020 | Indonesia | 900 Tons | Bombana Sugar Plant project, ASTM A335 P11,seamless casing pipe+fitting(ASS131) |
| Year 2020 | Nigeria | 1070 Tons | Oil Pipeline project,API 5L PSL1 X52 seamless steel pipe with 3PE coating for oil transmission(CC240) |
| Year 2020 | South African | 13KM | Oil Transportation Project Located in Durban,API 5L 46TH ,seamless steel pipe for Oil Transportation (CC054) |
| Year 2019 | Nigeria | 1855 Tons | NNPC oil casing project,API 5CT J55/P110 seamless casing pipe for Oil well (JH148) |
| Year 2018 | Nigeria | 2309.69 Tons | API 5L PSL 2 X52N Seamless Steel Pipe and Bend with FBE 16 mils and black painting(SZLL079) |
